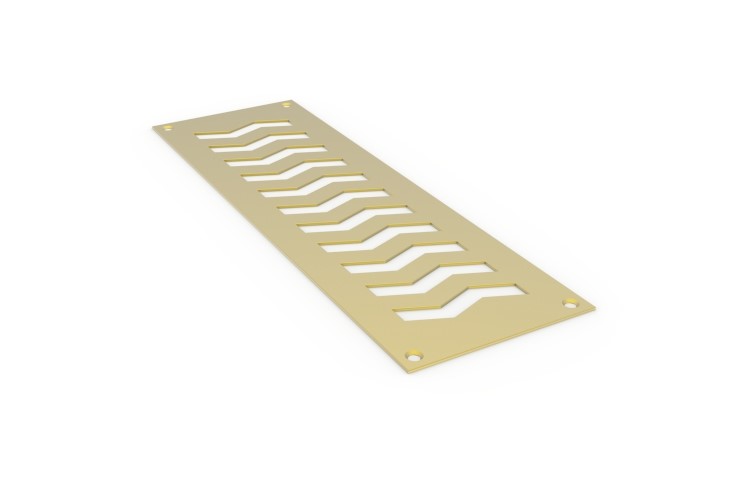

Zig Zag Ventilator

The Zig Zag Vent is part of our Heavy Duty range, adding a classy finish to your ventilation needs.

Finish

Size

Clear

Finish

Size

Clear

Zig Zag Ventilator made from high quality 1.2 millimetre material. Other thicknesses are available on request. Special sizes available. Suitable for Floors, doors, walls and ceilings.

Part Number	Size (Millimetres)	Size (Inches)	Air Space (mm² )	AB/SB/IBMA	SSS/PSS	PB	SAA
HD5646	178 x 39mm	7” x 1.5”	1090	POA	POA	POA	POA
HD5641	152 x 76mm	6” x 3”	3563	POA	POA	POA	POA
HD5649	152 x 152mm	6” x 6”	5080	POA	POA	POA	POA
HD5642	229 x 76mm	9” x 3”	5599	POA	POA	POA	POA
HD5643	229 x 152mm	9” x 6”	11198	POA	POA	POA	POA
HD5650	229 x 229mm	9” x 9”	15240	POA	POA	POA	POA
HD5644	305 x 76mm	12” x 3”	7126	POA	POA	POA	POA
HD5645	305 x 152mm	12” x 6”	14252	POA	POA	POA	POA
HD5648	305 x 229mm	12” x 9”	22905	POA	POA	POA	POA
HD5647	305 x 305mm	12” x 12”	30540	POA	POA	POA	POA
